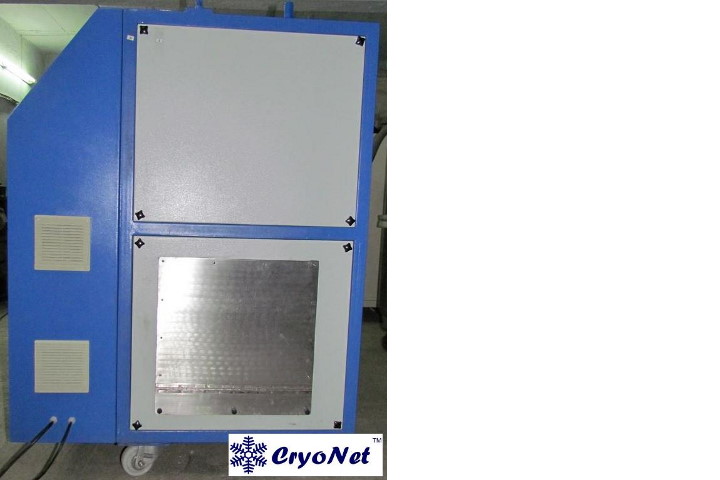

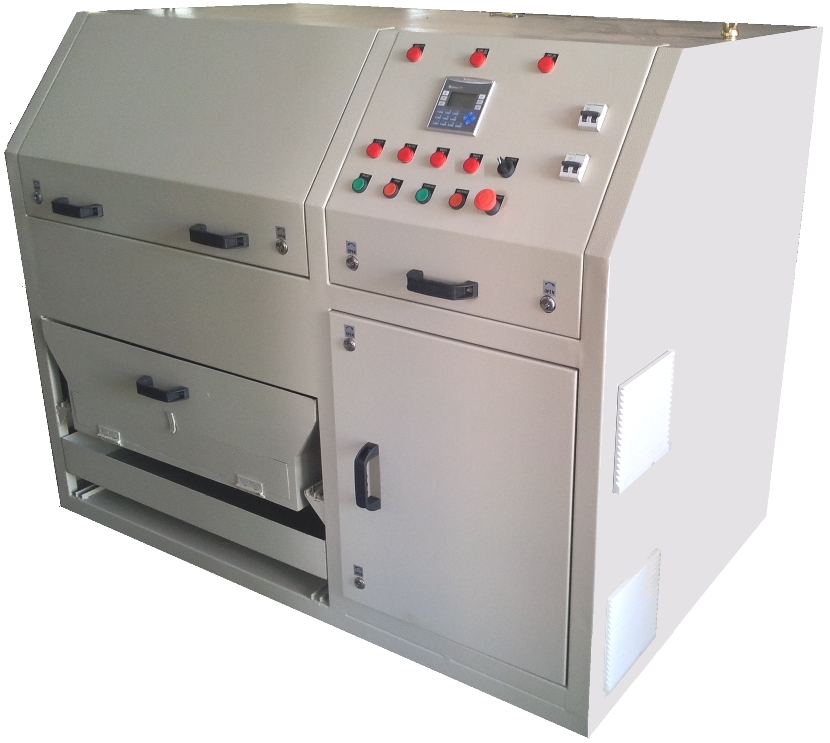

Tumbleblast  Cryogenic Deflashing  Machine

The  Tumbleblast  Cryogenic Deflashing  Machine  from Cryonet,  Surat  is  designed  to deflash  rubber,  zinc  –  aluminum parts. This machine  can effectively deflash  variety  of  parts.  It  uses special

steel balls or other media to deflash  the  parts  with  through holes.







Features -
•  304  Stainless  Steel  barrel insulated

to  reduce  Liquid Nitrogen consumption


•  Maximum cooling temperature - 150°C.



•  Powder  Coated  sheet  metal enclosure

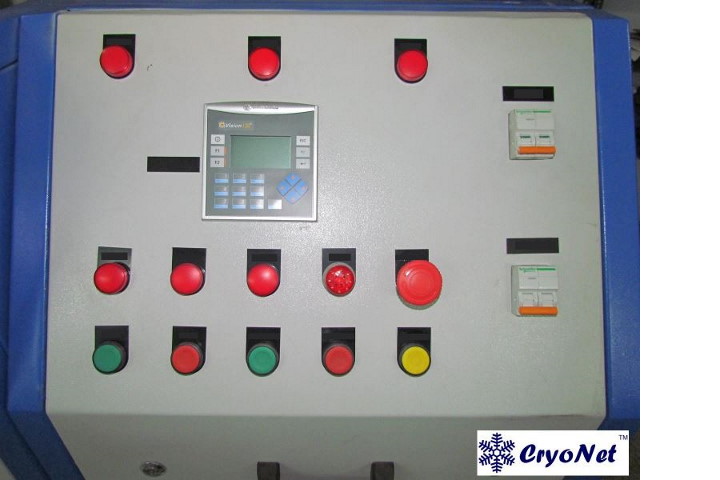

•  Automatic  PLC  controlled Operation.



•  Safety Interlock



•  Programmable  variable  speed drive



•  Compact Size– 1000D X 1500W
X 1200H (mm for Model 100)

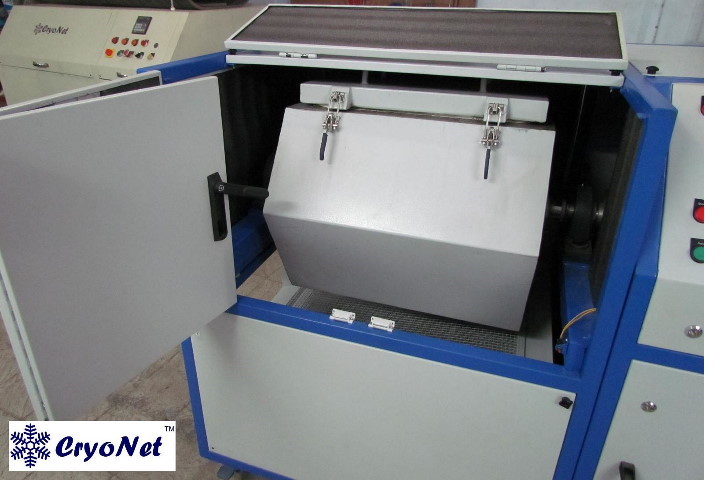

•  Inbuilt sieve tray for separating  Parts and media



SPECIFICATIONS OF TUMBLEBLAST CRYOGENIC DEFLASHING MACHINE



Model 30

Model 60

Model 100

Barrel Capacity in Liter

30

60

100

Effective Capacity for parts

15

30

50

External Dimensions of Unit (mm)

900D x 1250W x 1100H

900D x 1350W x 1200H

1000D x 1500W x 1200H

Mode of Operation

Semi - Automatic

Automatic

Automatic



Drive Motor (kW)

0.75

0.75

1.1

Power Supply

AC 220/240V, 50Hz, Single Phase

AC 220/240V, 50Hz, Single Phase

AC 220/240V, 50Hz, Single Phase

Temperature Range

Room Temperature to -150°C

Room Temperature to -150°C

Room Temperature to -150°C

Cooling Media

Liquid Nitrogen below -50°C

Liquid CO₂ for above -50°C

Liquid Nitrogen below -50°C

Liquid CO₂ for above -50°C

Liquid Nitrogen below -50°C

Liquid CO₂ for above -50°C


ADVANTAGES OF TUMBLEBLAST CRYOGENIC DEFLASHING MACHINE

1. highly economical to own as compared to other blasting machines
2. highly economical to run / operate
3. low liquid nitrogen consumption
4. simple rugged construction
5. wide variety of components can be deflashed
6. Media cheap and easily available. not to be imported at high cost
7. Low Power Consumtion
