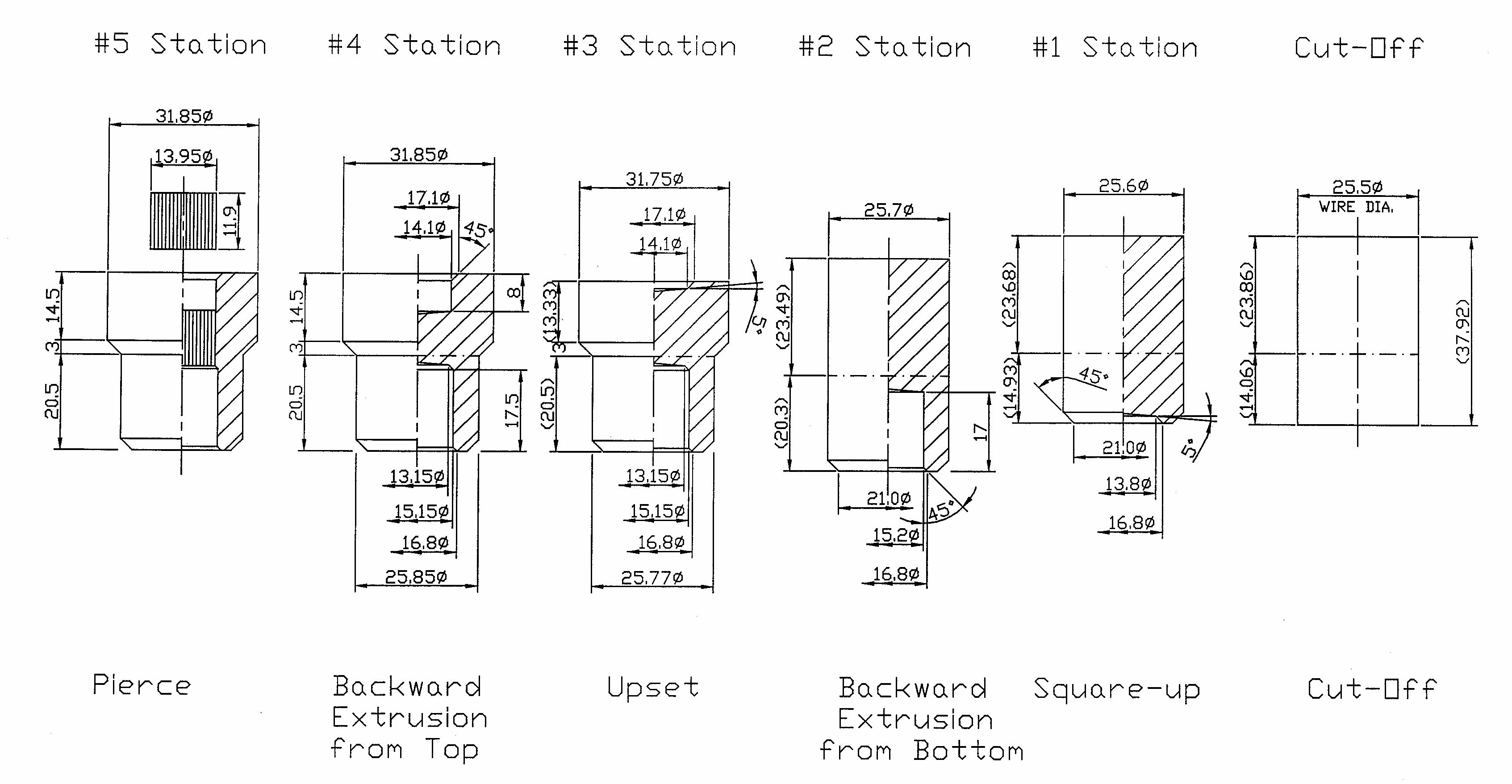

This program is for designing forging stage layout for product / components. A product can be made from different combination of shapes / elements.

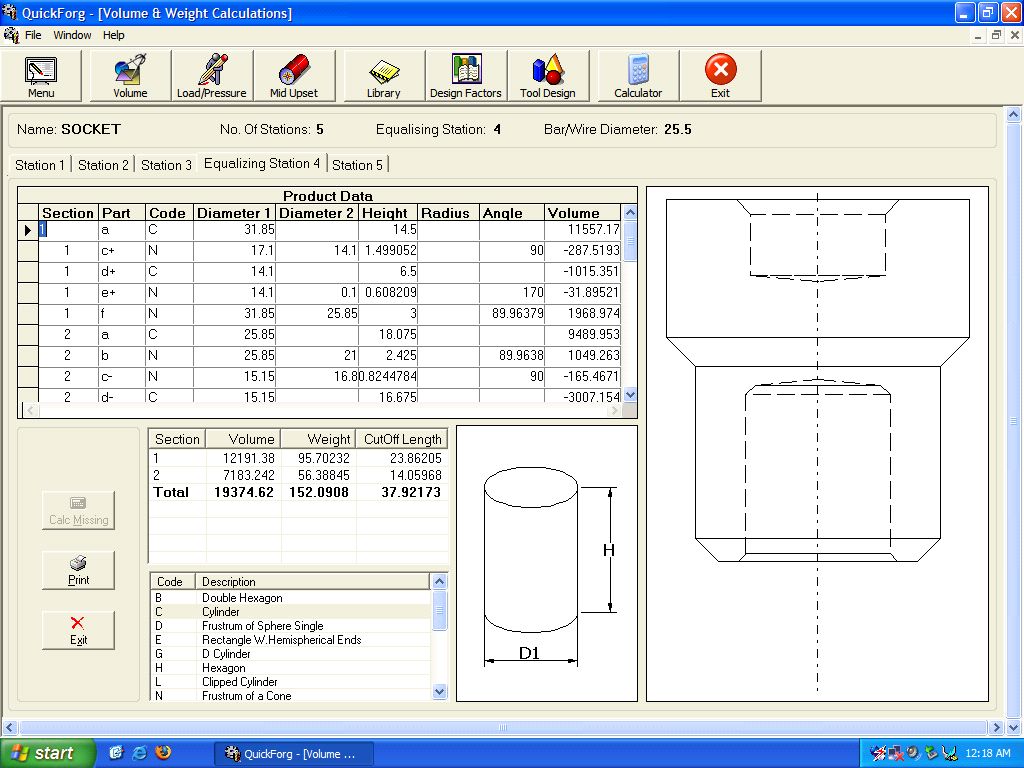

This program prompts user to define combination of shapes of which particular product or components is made of. It also prompts for dimensions for each of these shapes / elements at same time. The program calculates the volume of these shapes / elements and draws the shapes of each elements and built-up product / components.

Program helps in finding missing dimension of intermediate stages, cut-off length, and weight of product / components.
