For more delicate products or products with internal flashes we have shot blasting based cryogenic deflashing equipment.

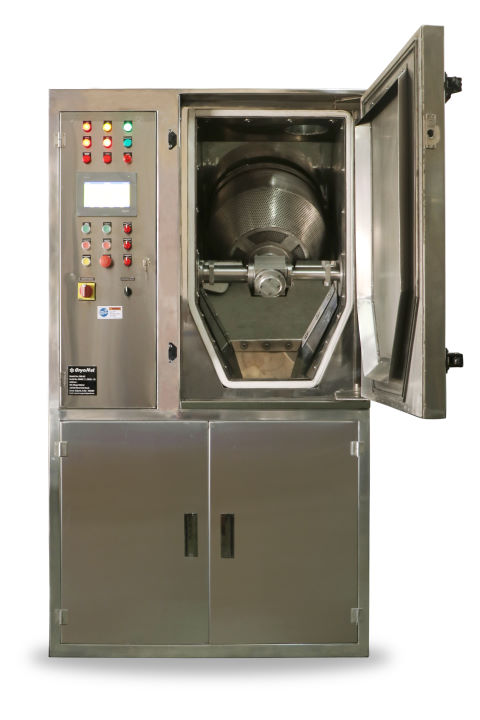

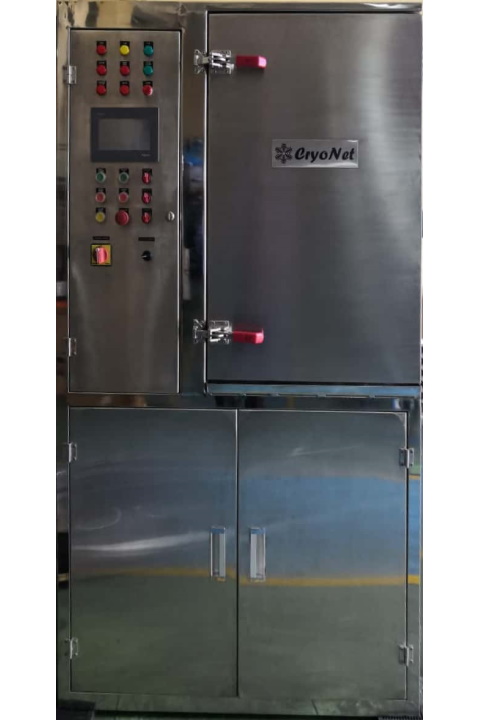

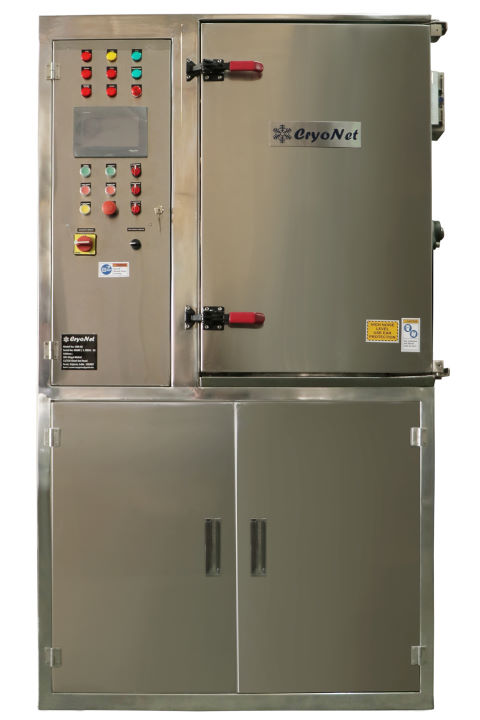

■ The Cryogenic Deflashing Machine from Cryonet, Surat is specially designed to deflash rubber and plastic parts. The process uses liquid nitrogen, barrel rotation and polycarbonate media in varying combinations to remove the flash in a highly precise, economical and expedient manner.


■ Parts that have thin flash can be quickly and thoroughly cryogenically deflashed. This process is exceptionally good at removing the inner dimensional complex flash that can not be removed by any other method.





CRYOGENIC DEFLASHING MACHINE FEATURES

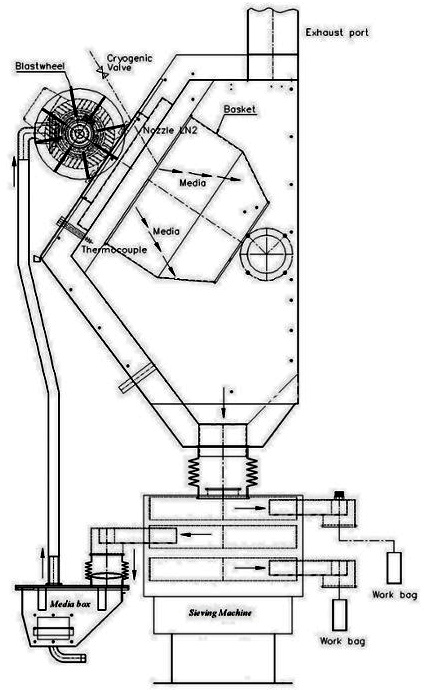

Deflashing Machine Schematic

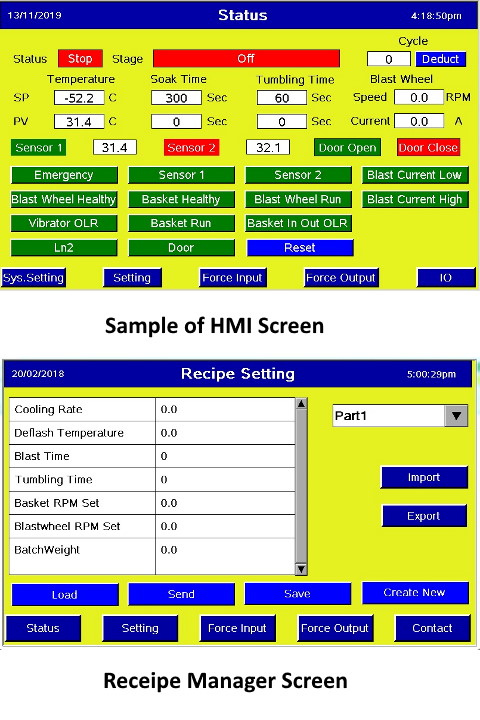

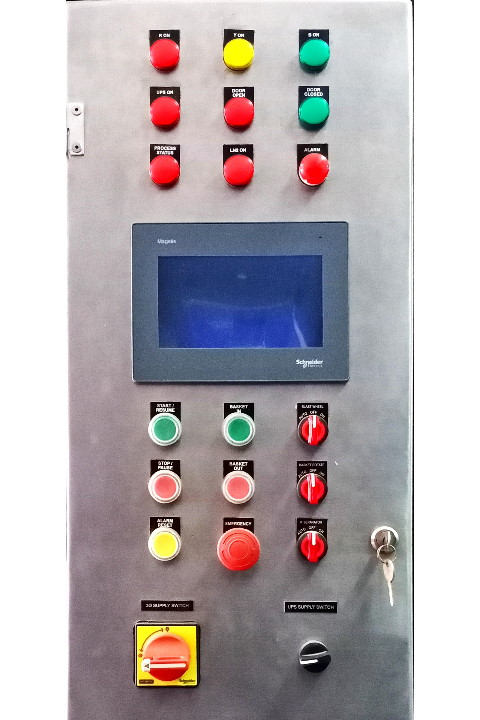

■ User friendly with 7” colour touch HMI panel with controls for settings, operation, maintenance and recording of process run. Easy to operate and manage.


■ Maximum cooling temperature - 135 deg c


■ Machine frame is made of stainless steel 304 with dual tone polished structure for better aesthetics and visual appeal.


■ Compact design for floor space saving


■ 70mm insulated walls for excellent cold insulation and conservation to reduce liquid nitrogen usage


■ Balanced design for wheel size to power ratio to deliver best processing results and highest productivity.


■ Best in class SS 304 vibratory separator for running in the low temperature environment without failure.


■ Media circulation system by negative pressure generated by blast wheel rotation and not by screw conveyor thus leading to media saving and lower power consumption.

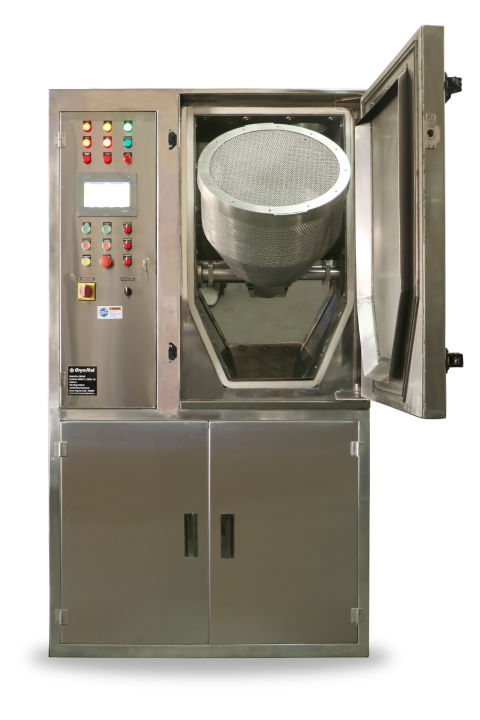

■ Special design basket ( loading & unloading made easier ).

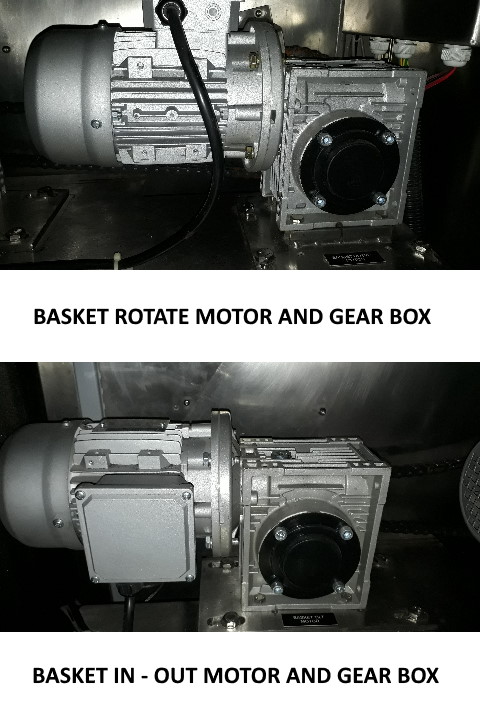

■ Gear box and transmission assembly customized for running continuously at low temperature ensuring longer bearing life and dust built-up reduction. Lower maintenance cost and lower downtime


■ Usage of heavy gauge SS 304 plates and sheet for solid construction of machine for very long life. Heavy plates for door and basket to prevent deformation even after long usage time

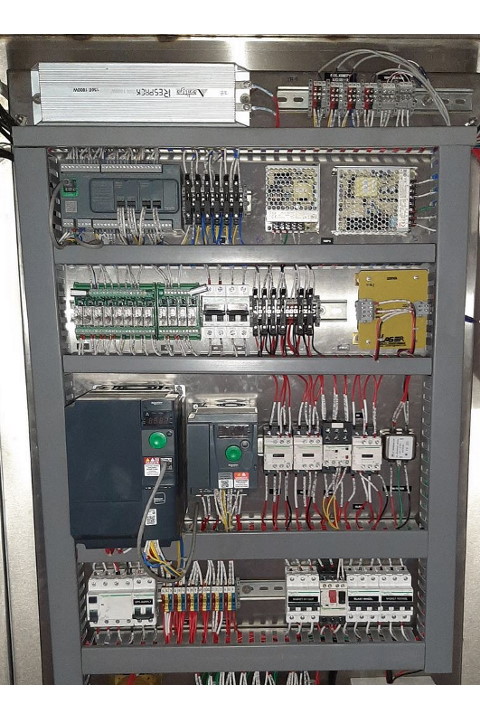

■ Reputable electrical / electronic components & machine parts from world renowned brands to ensure long trouble free life , consistent performance in the low temp environment.


■ To meet various customer demands following sizes are available :- 30 Ltr, 40 Ltr, 60 Ltr, 120 Ltr



OUR CRYOGENIC DEFLASHING MACHINE ADVANTAGES

■ Greater productivity

■ Large output in short time

■ Better and consistent Finish

■ Low Labour dependence

■ Space Saving

■ Low Media Consumption

■ Wide variety of rubber compounds . NR to Silicon Rubber

■ Low Nitrogen Usage

■ Simple Electrical Controls

■ High Efficiency Blast Wheel

■ Safety Interlocks

■ Simple and Very Low maintenance


YOUTUBE VIDEO

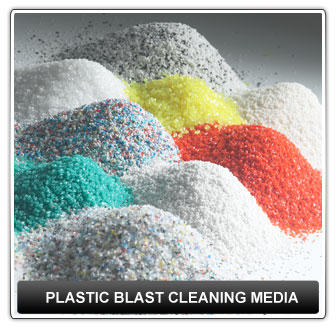

CRYOGENIC DEFLASHING MEDIA


Cryogenic Deflashing Media

■ Various Sizes of High Performance Cryogenic Deflashing Media Available


■ Abrasion resistant in cryogenic conditions produced from high molecular wt branched polymer. For maximum hardness and impact strength


■ The unique design produces a cleaner, more accurate pellet profile and a more consistent high quality deflashing performance.


■ Sizes Available : 0.5 mm, 0.75 mm, 1.0 mm, 1.25 mm, 1.5 mm
